・A thin type Z axis stage is the Z axis stage where a flat table face is adjusted slightly to the verticalness direction.
・The stage where the height was reduced can put space to good use and is also more suitable for the built-in use than a conventional equal size stage.
[The size reduced from the height of the ZA-60M type about 50 %.: the ratio of our company]
・A cross roller is adopted as a movement guide and operation is adjusted to a drive system by fine micrometer head of the pitch 0.25mm type.
・A precise organization is included in the very light body bowels.
・A minute adjustment is achieved by operation of the micrometer head which is the fine paitch.
・The amount of transfer of the stage face when making them do micrometer head 1 revolution, is minute at about 0.063 mm.
・It’s possible to connect and use ZA-60FMT to other stages of the same one size standard.
・It’s possible to connect to a XY axis stage, φ 60 θ axis stage and GONIOMETAR.

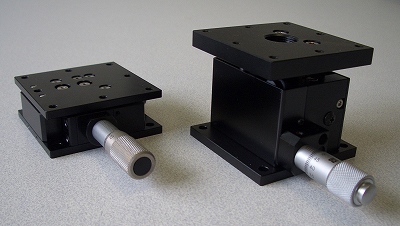

← Pict ZA-60FMT & ZA-60M
